Minitrix Ivatt 2MT 2-6-2 DCC Conversion

Mistakes may damage your locomotive, controller or other accessories. Use a multimeter to make absolutely sure you have completely isolated the motor from the track before testing. Always use the Programming Track for testing. Our guides are provided for reference only, and you proceed entirely at your own risk. Unsure about something - try our DCC Conversion Service instead.

Order Your Conversion Now

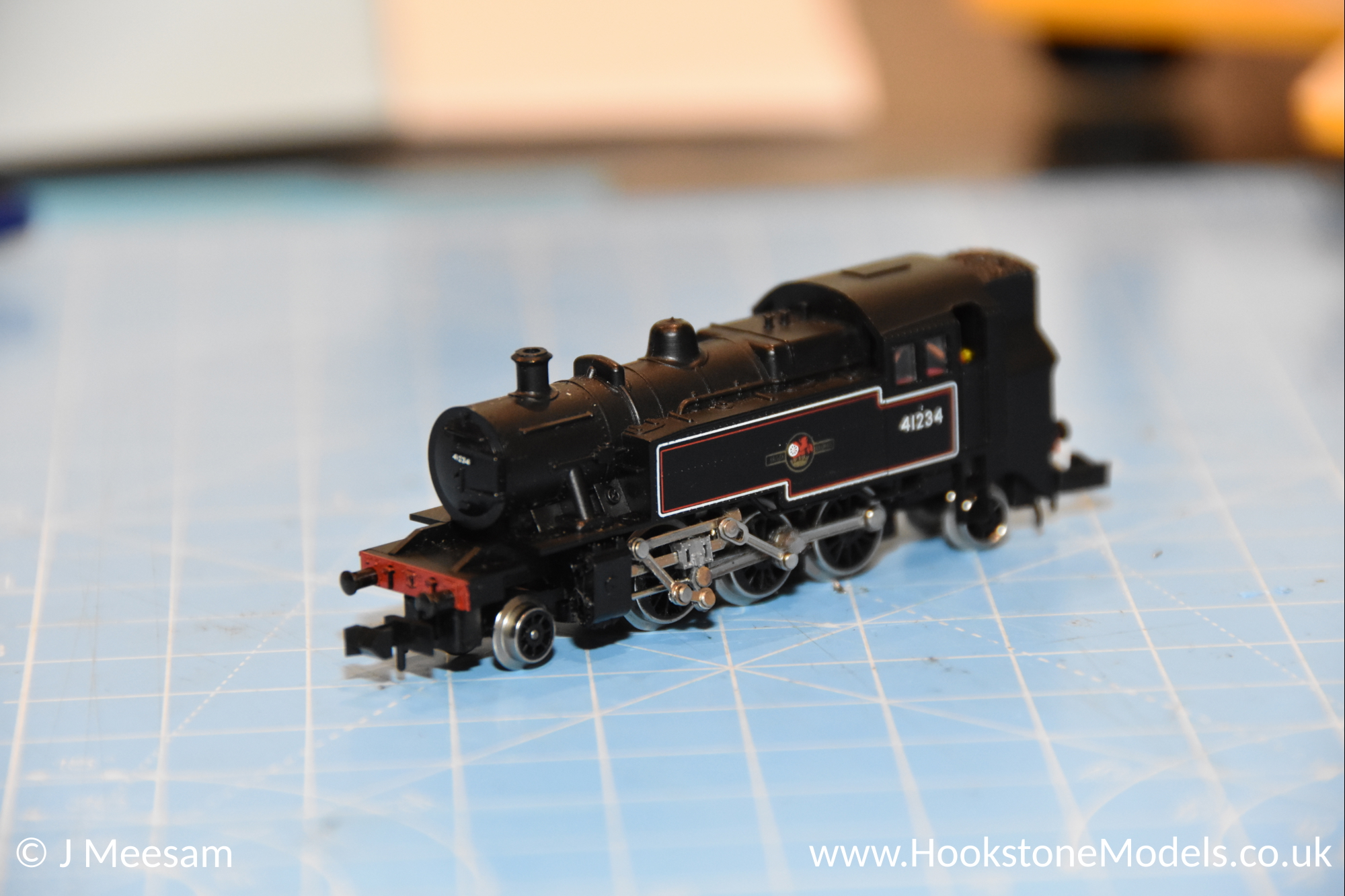

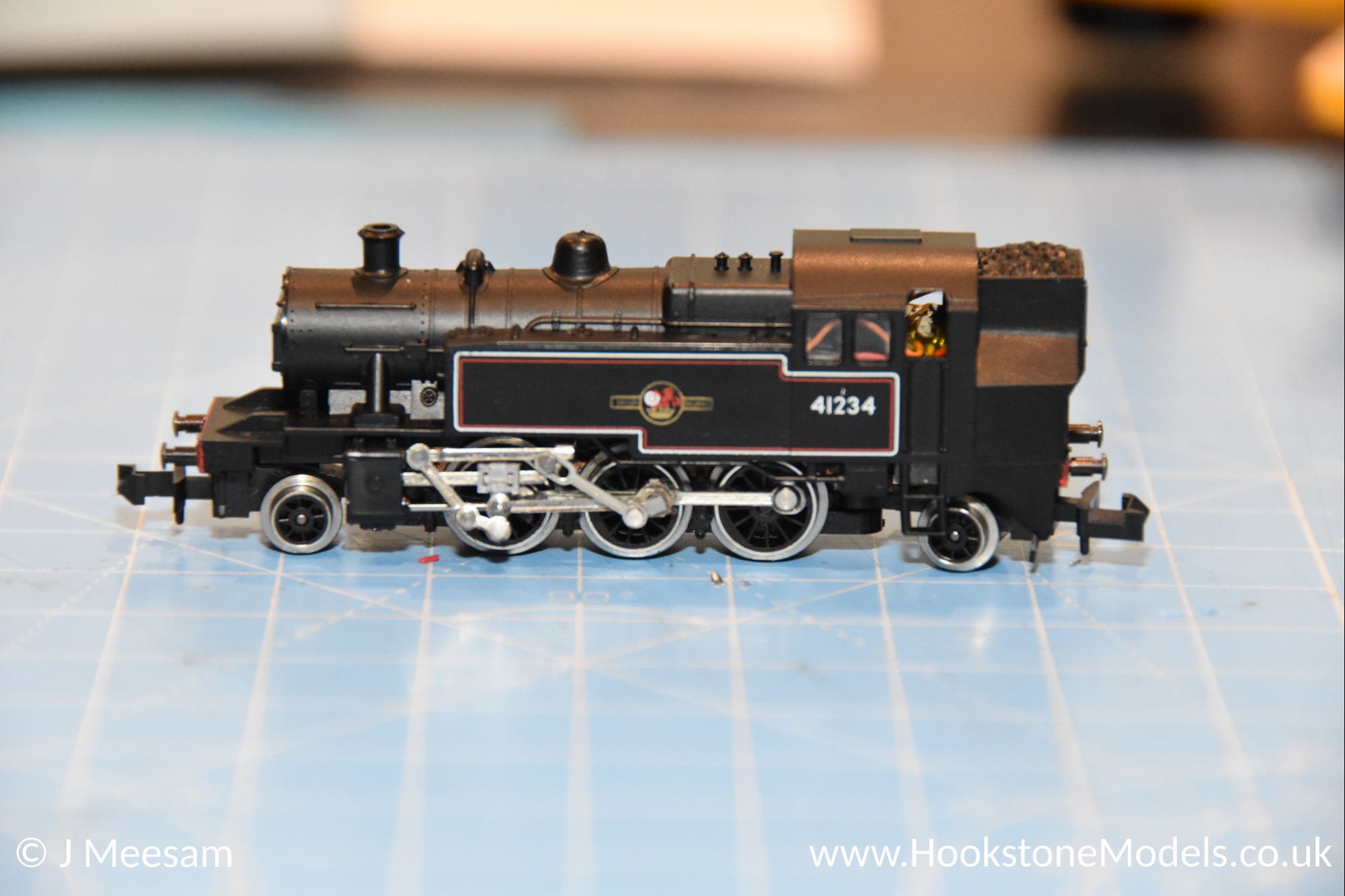

This guide covers the Minitrix Ivatt 2MT 2-6-2 models, including:

• N205 Ivatt 2MT 2-6-2 41234 (BR Black)

The 2-6-0 tender version of the Ivatt 2MT is very similar to convert, but there is a specific guide to converting the N202 Ivatt 2MT 2-6-0 here too.

Step 1 - Remove Body

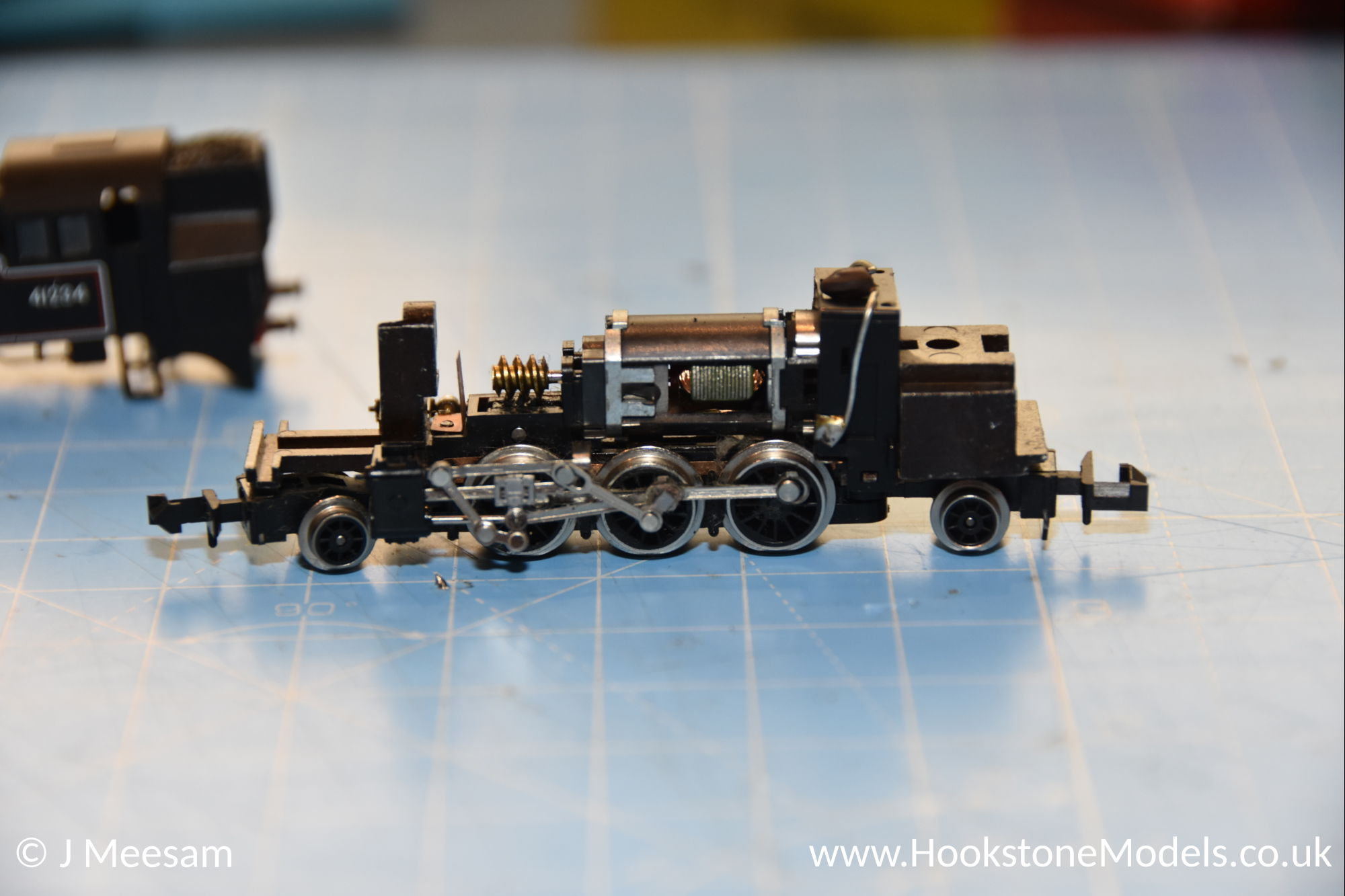

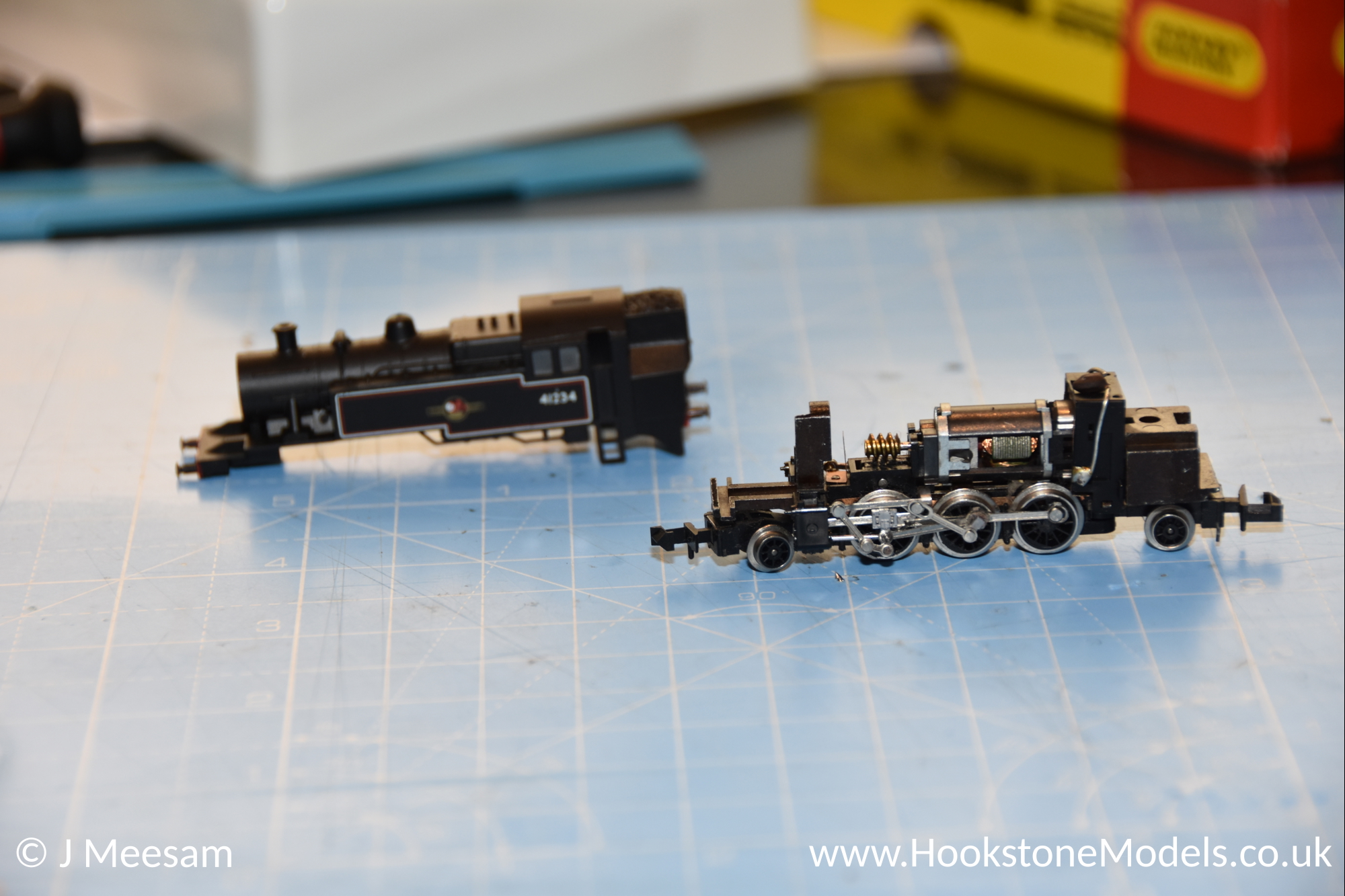

First pop off the smoke box cover using your fingernails. Remove the screw behind it. You should then be able to gently wiggle the rear of the loco to separate the body from the chassis. Do not hold onto the conrods while removing the body as this risks bending or damaging them.

Step 2 - Remove Motor Housing

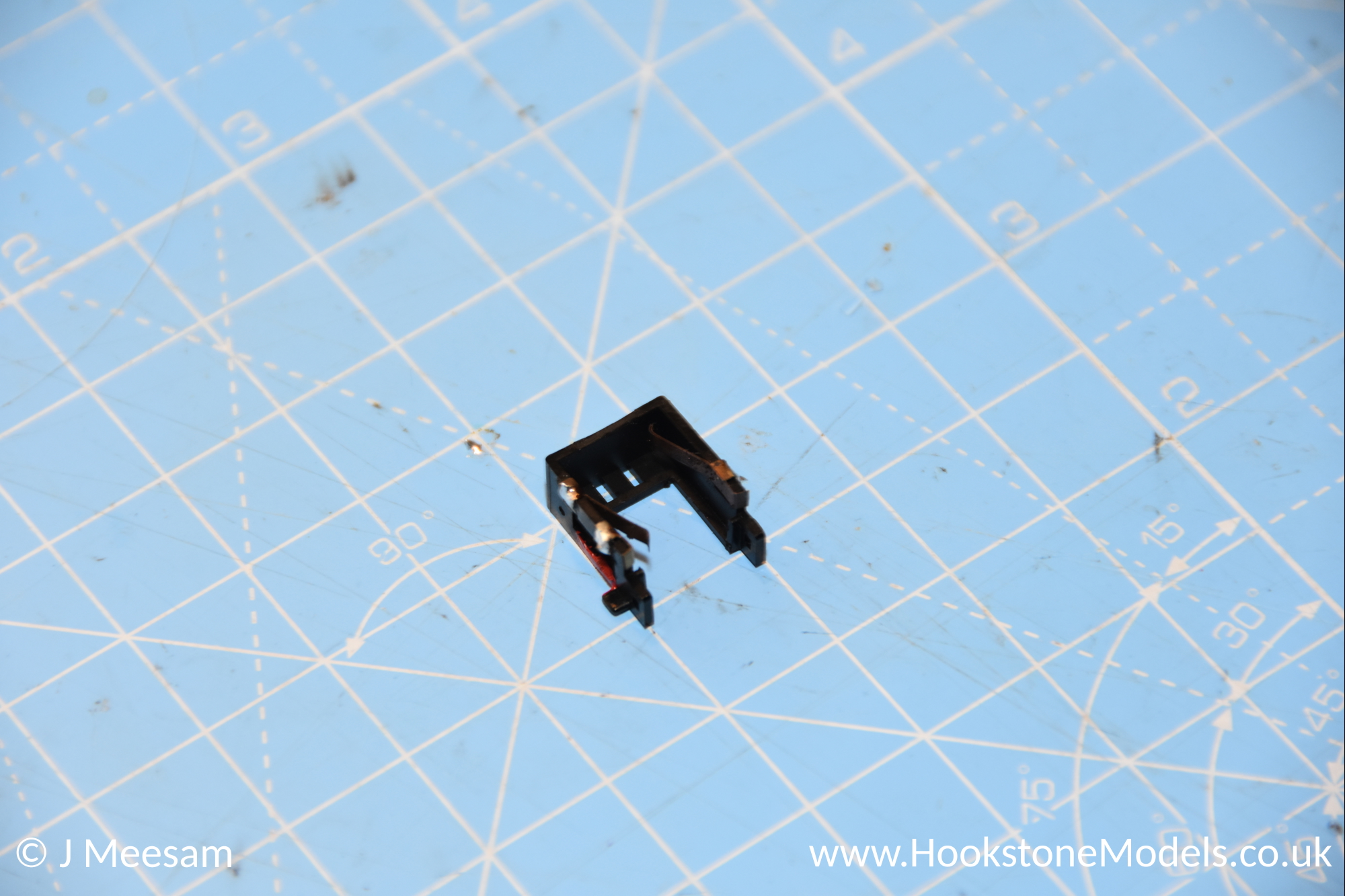

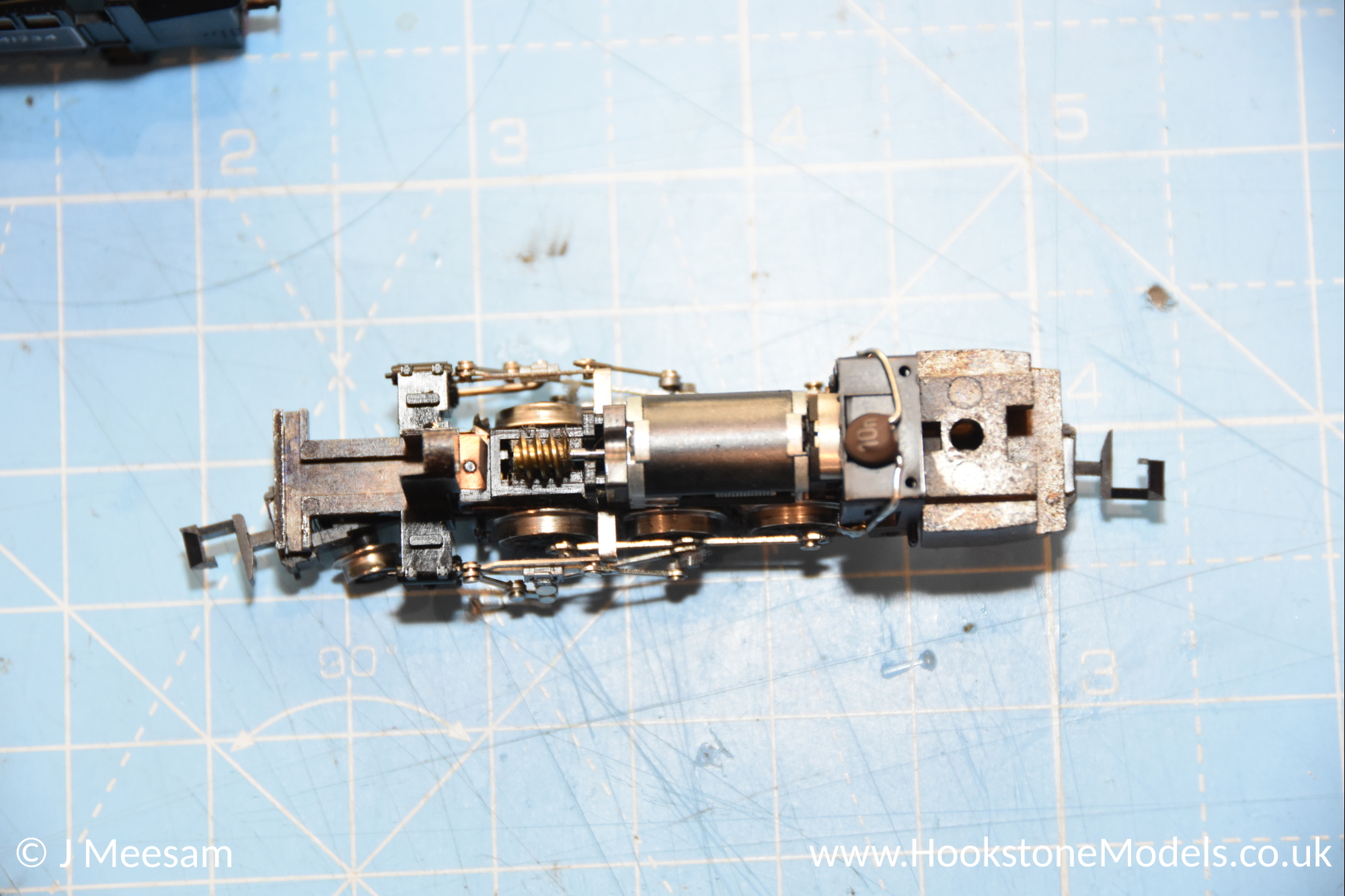

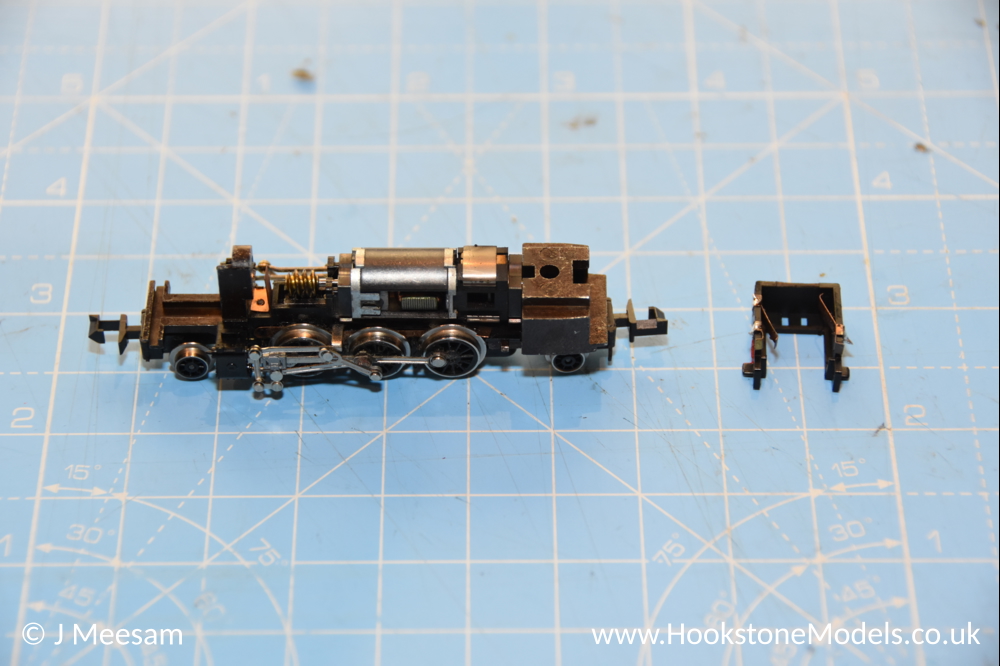

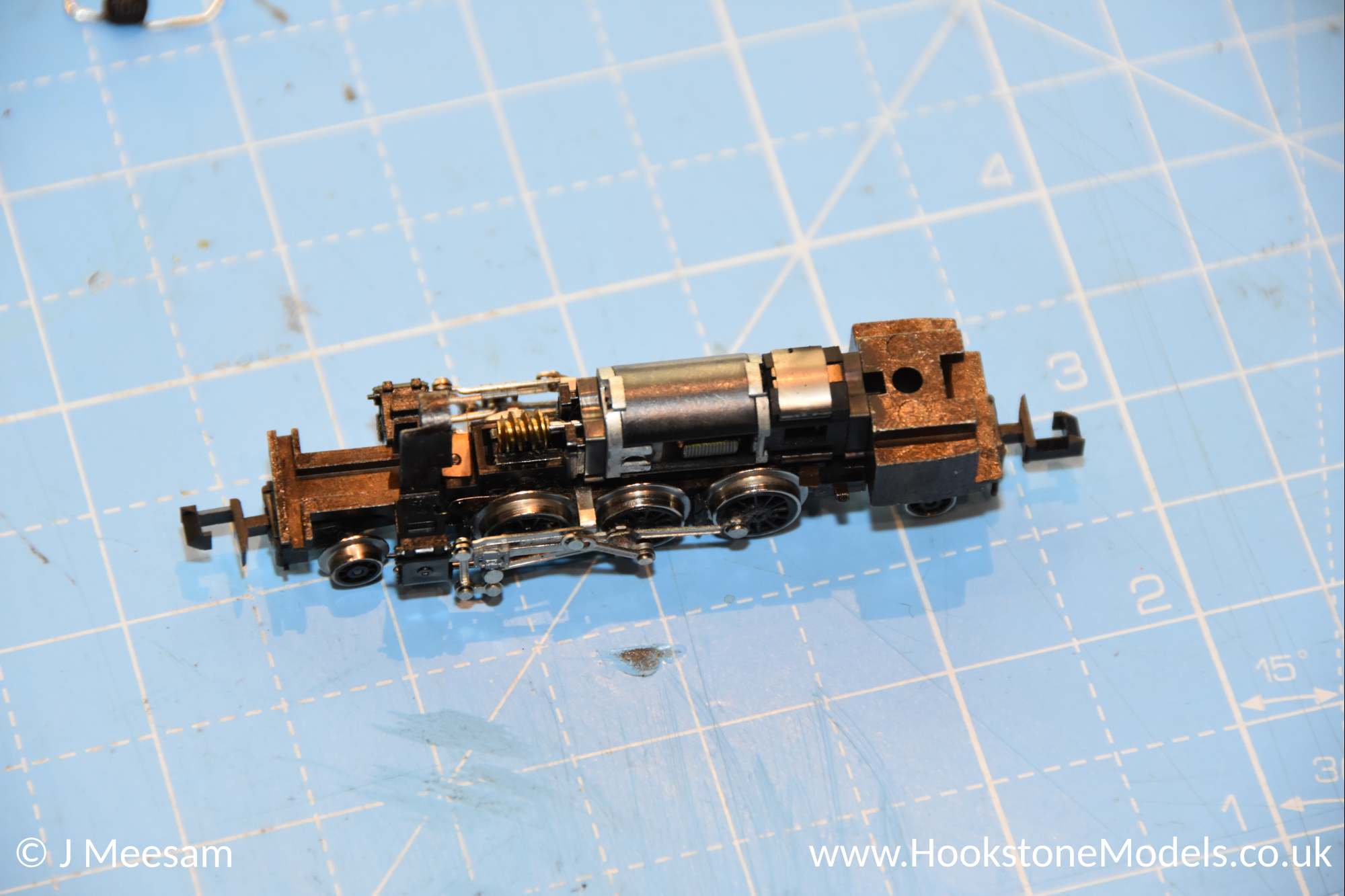

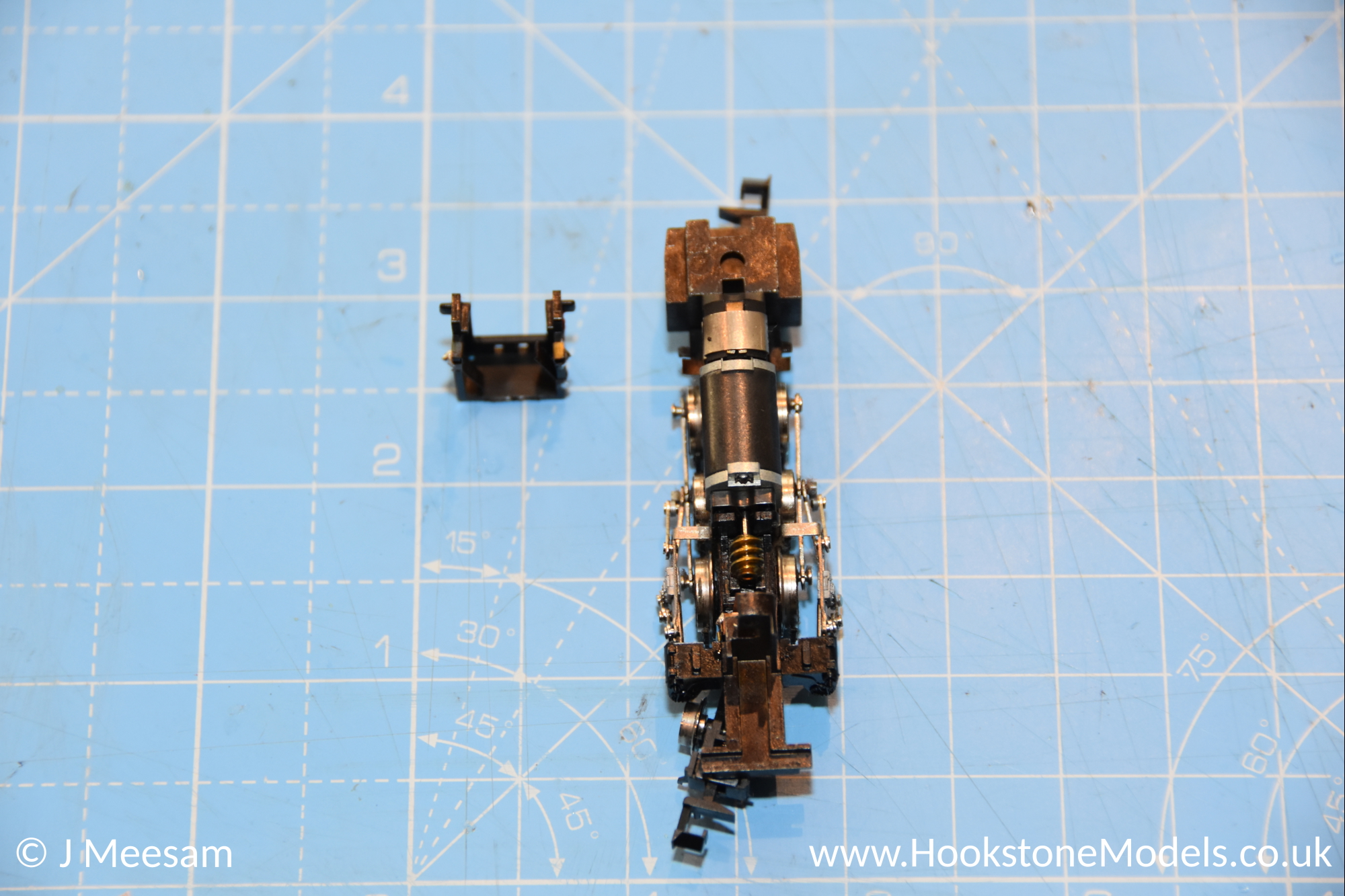

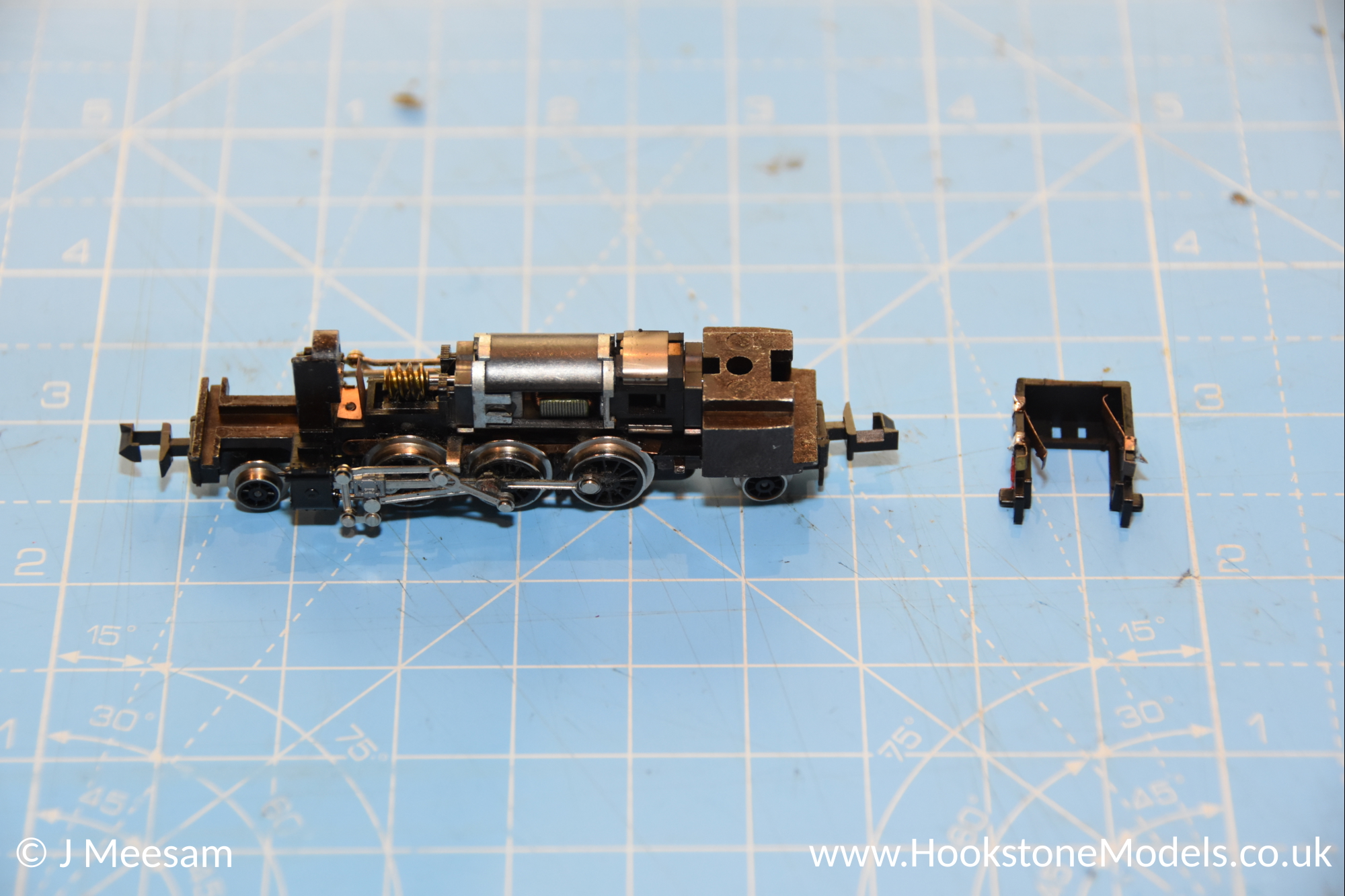

Unclip the plastic motor housing. Note how the contacts on the 'feet' touch the pickup contacts coming from the wheels. It is this connection that we need to isolate so we can insert a decoder between the track power and the motor. Desolder the capacitor that is over the top of the motor housing, and also the choke that bridges the two solder points on one side.

Step 3 - Connect Decoder Track Power

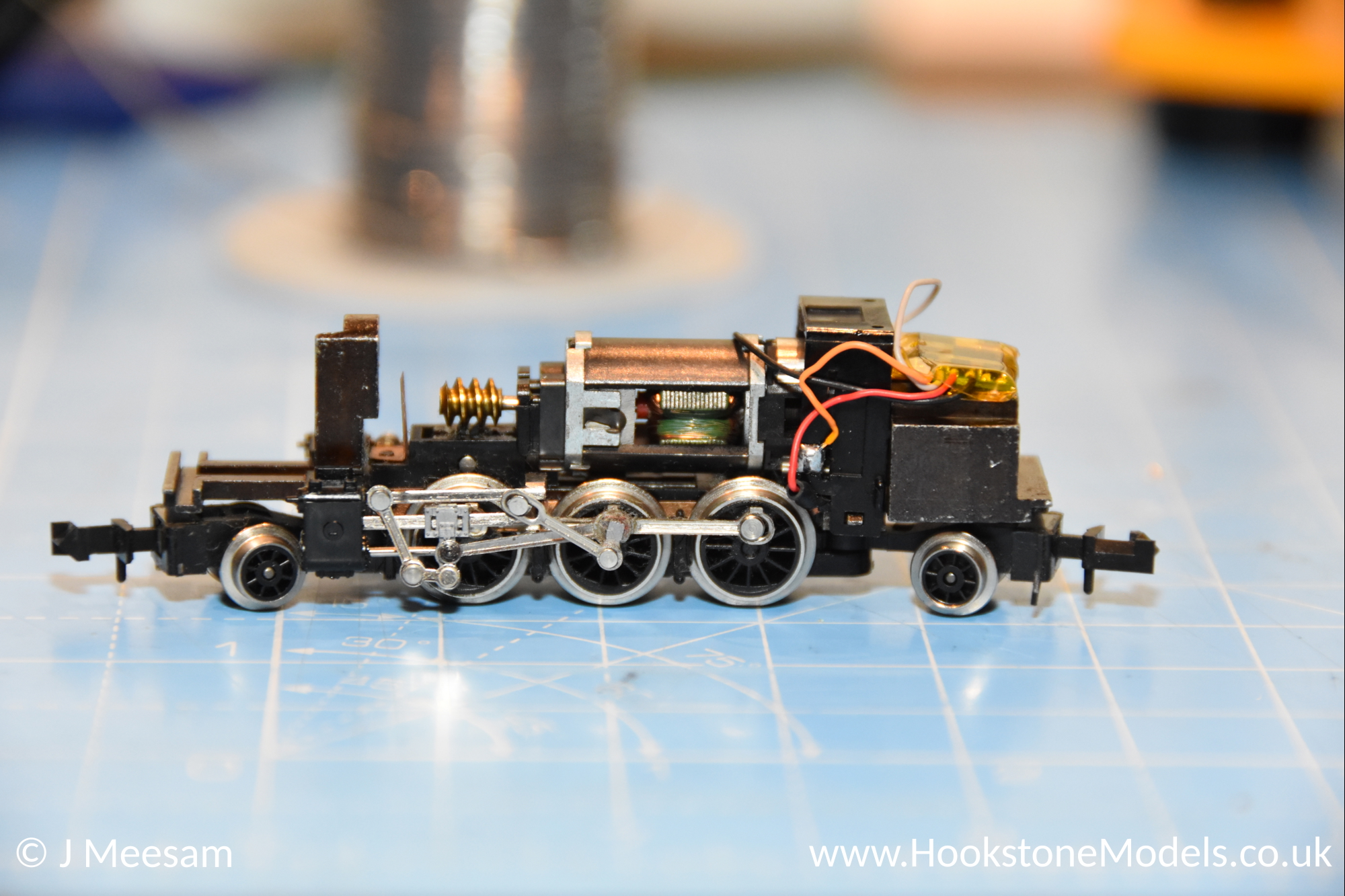

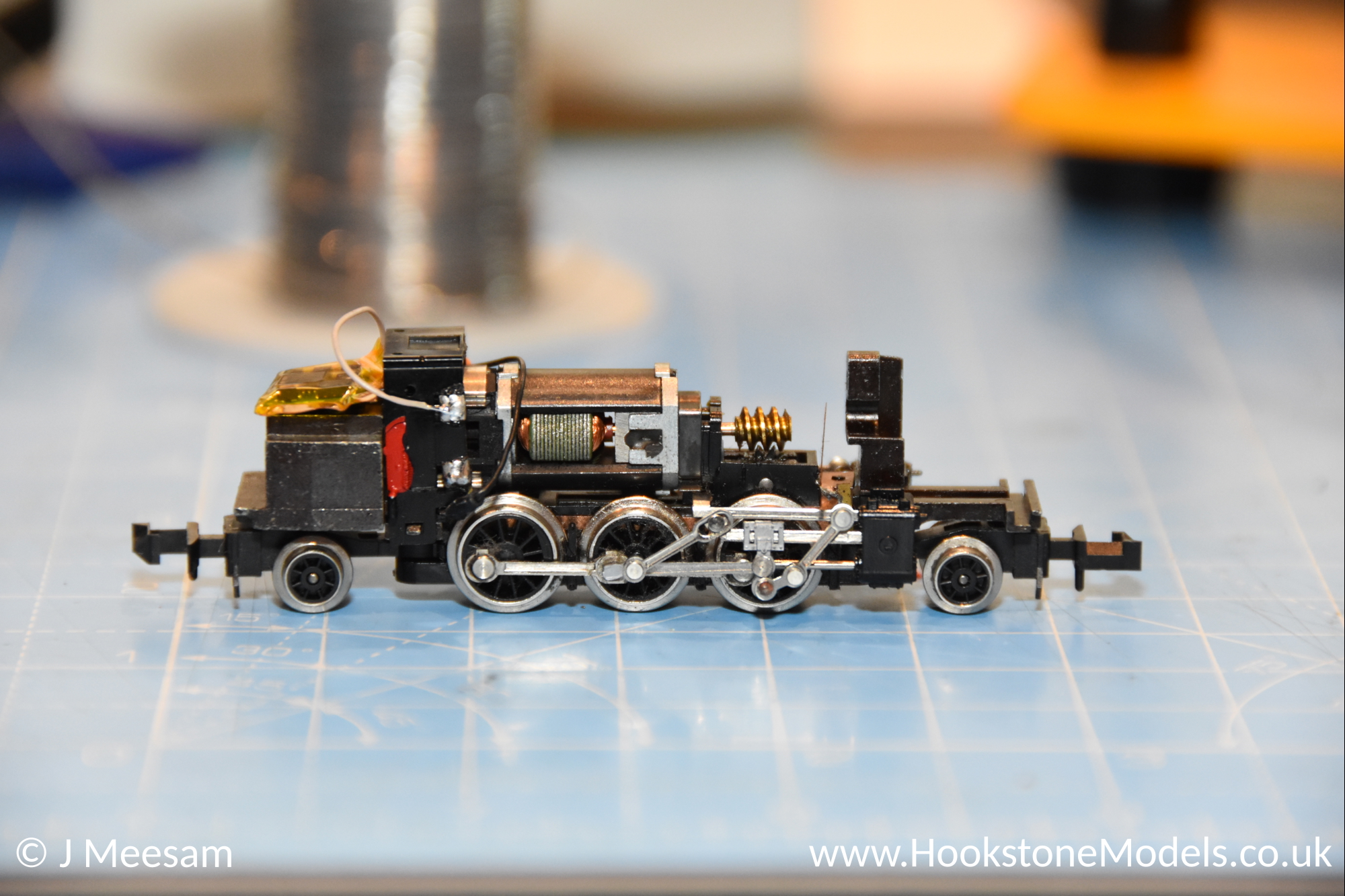

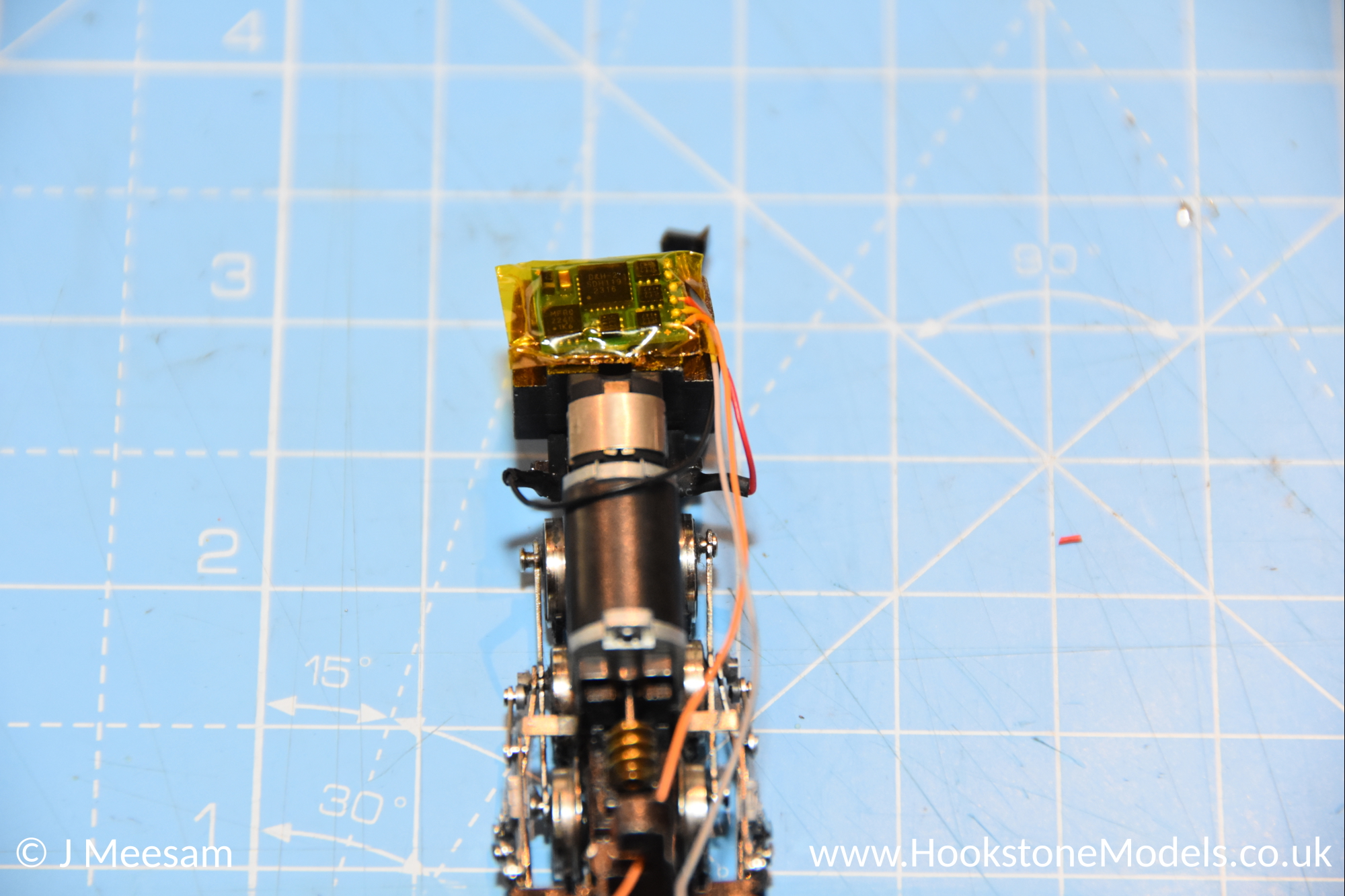

Position the decoder at the back of the chassis using a sticky pad or blacktack. Ensure the decoder cannot touch any internal metal parts. Solder the red and black wires to the two track pickup tabs, using a small piece of shrink sleeve to prevent the legs of the motor housing from making an electrical contact when re-fitted.

Step 4 - Connect Motor

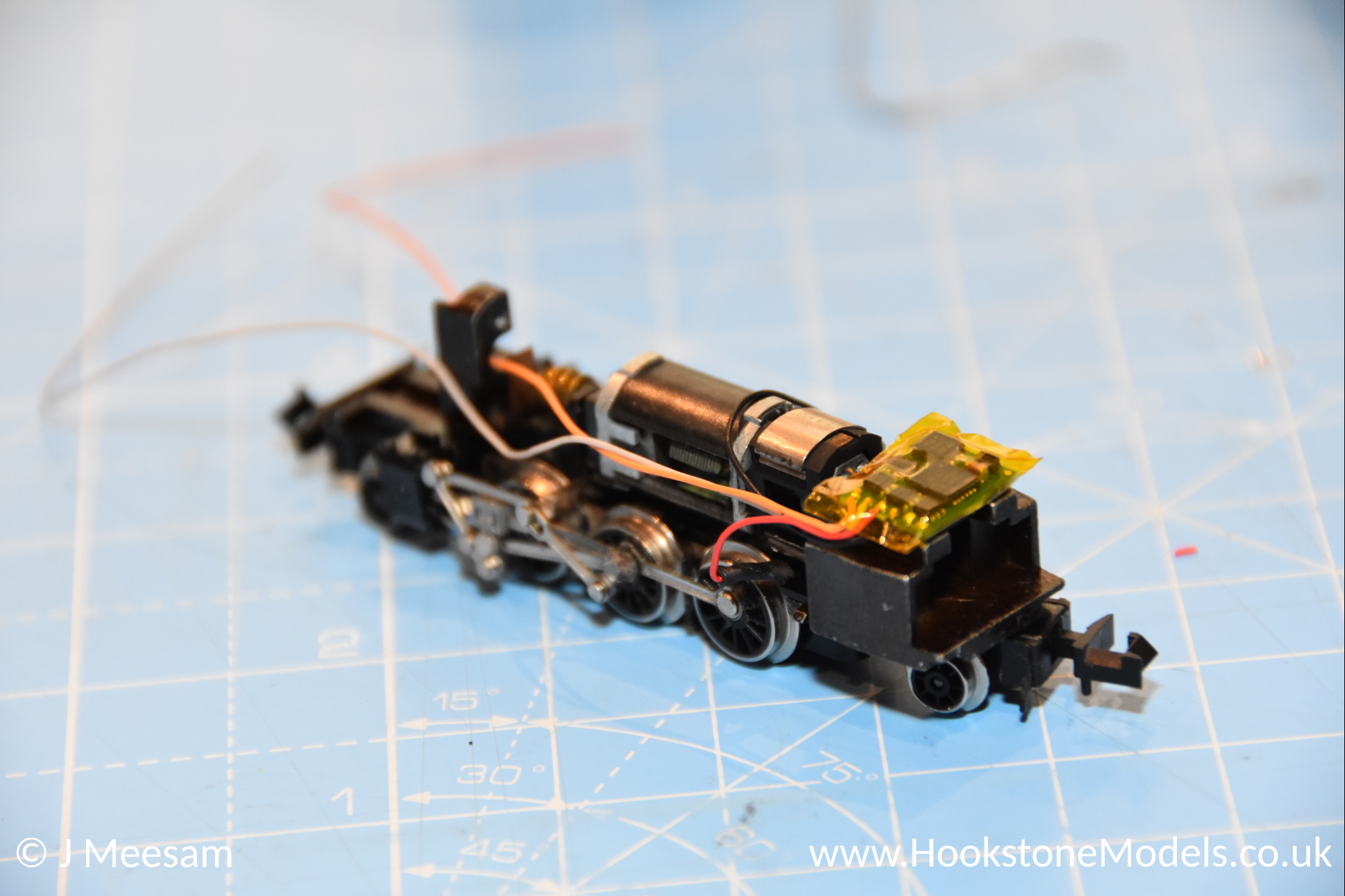

Clip the motor housing back on. Make sure the contacts inside the motor housing are correctly touching the upper and lower contact areas of the motor. Solder the grey wire to the upper solder point on the side where there are two solder points. Solder the orange wire to the single solder point on the other side.

Step 5 - Test

Place the loco on your programming track and attempt to read the decoder ID. After some shuffling, you should get the default ID 3 back. If the loco drives in the wrong direction as per your controller, either swap the orange and grey wires around or set CVV 29 to reverse the direction. A good trick is to simply read the existing value of CVV 29, add 1 to it, then write it back. Check your decoder manual if you are unsure.

Step 6 - Refit Body

Refit the body by clipping the chassis back in at the back first. Ensure you have the correct fit, then replace the screw and the smoke box door.
